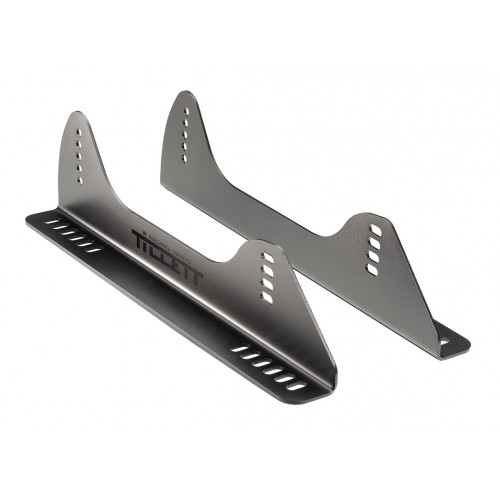

The VTBO brackets can be used with the B6 Screamer, B7, B8, B9, B10 and C1 seats. They also fit the side mount versions of the standard B6 and the W models of seats, but only when they are made with the additional back frame moulding. The bracket is the same shape as the aluminium STBO and has a hole spacing of 29 cm. This is mostly standard amongst the race car seat manufacturers but made with a 2° draw to perfectly match the sides of Tillett seats. The VTBO bracket system is designed to point away from the seat to give a wider footprint. They are made from 3 mm thick steel powder coated with a black textured finish so that it is more scratch resistant. with an edge profile which helps avoid the leg bulge above the front mounting point. The brackets allow the seat to be tipped, raised, and lowered using the various hole and slot combinations. The lower slots on the horizontal part enable them to fit the Tillett STRi and PTRi seat adjustment runners using a hole spacing of 315mm.
Please note, we advise against using any seat adjustment runners in a race car, as they are only intended for road use. The optional aluminium "Pegged spacer kit” can also be used in these to strengthen the front slots in the event of an accident.
A pair of VTBO weigh 1.8kg
